Robotic Fixture Design

See it in action

Problem: Manual clamping and welding processes were labor-intensive and physically demanding.
Goal: Automate the part-holding process to improve throughput and workplace safety.
Context: Operators were reporting frequent back injuries due to repetitive, awkward posturing during manual welding.

Responsibility: Lead designer for the mechanical fixture and the control logic.
Constraints: Must integrate seamlessly with existing robot arms and fit within the current cell footprint.
Tech Stack: CAD software for modeling, PLC for sequencing, and pneumatic actuators.

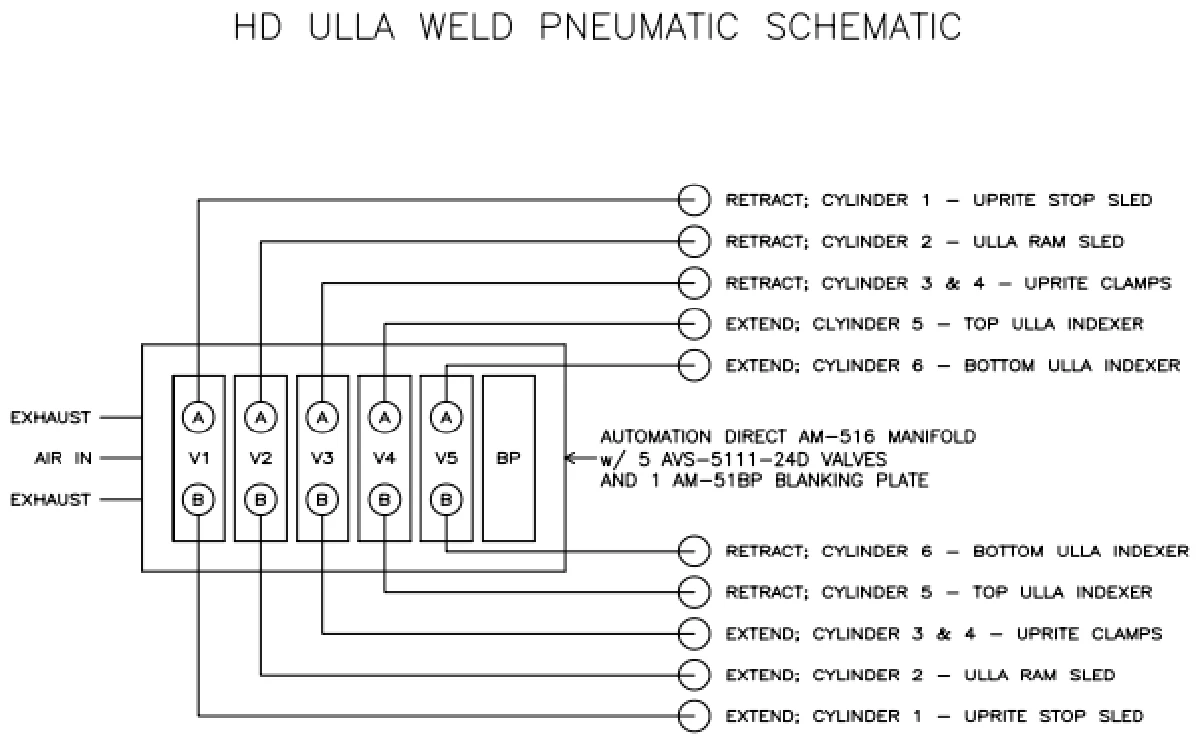

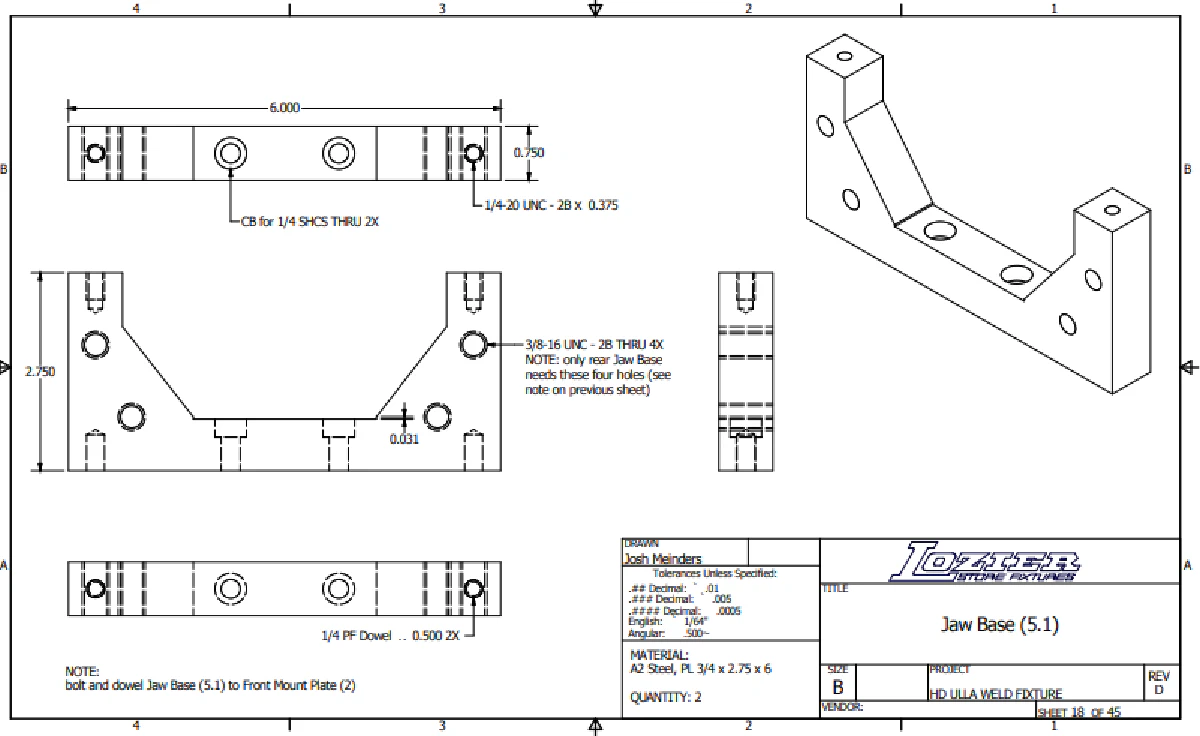

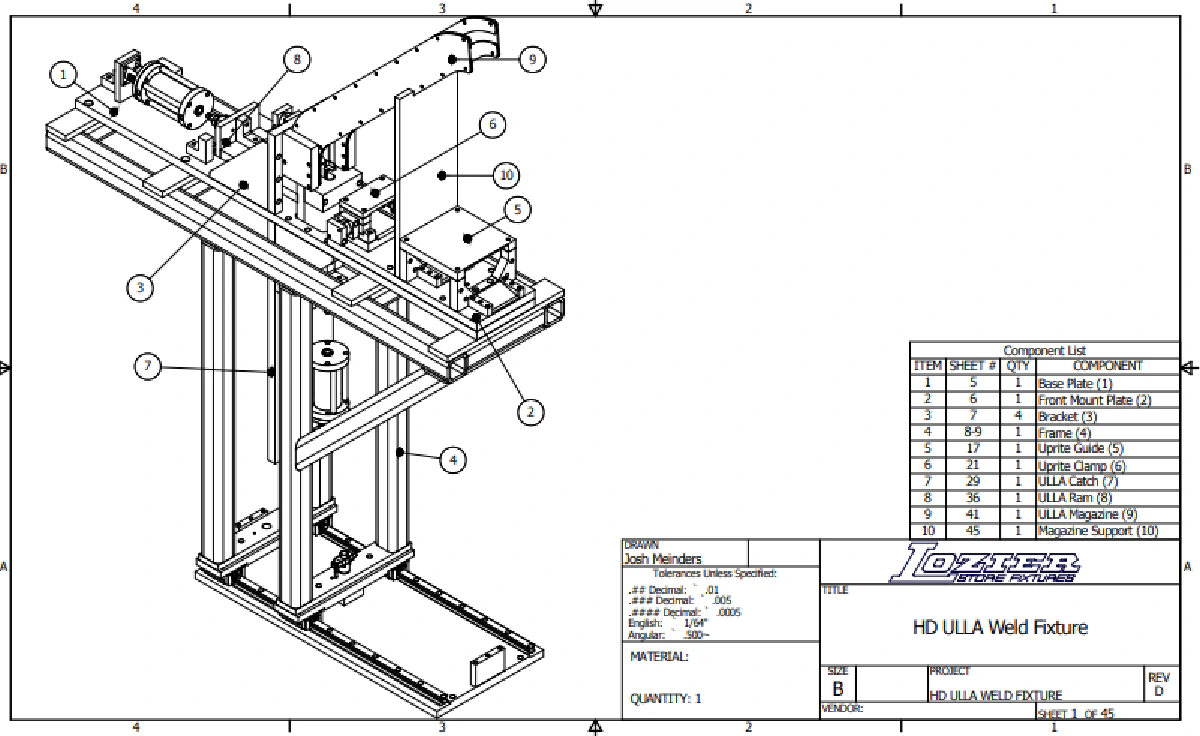

Design: Developed a custom pneumatically actuated clamping fixture using CAD to ensure precision alignment.

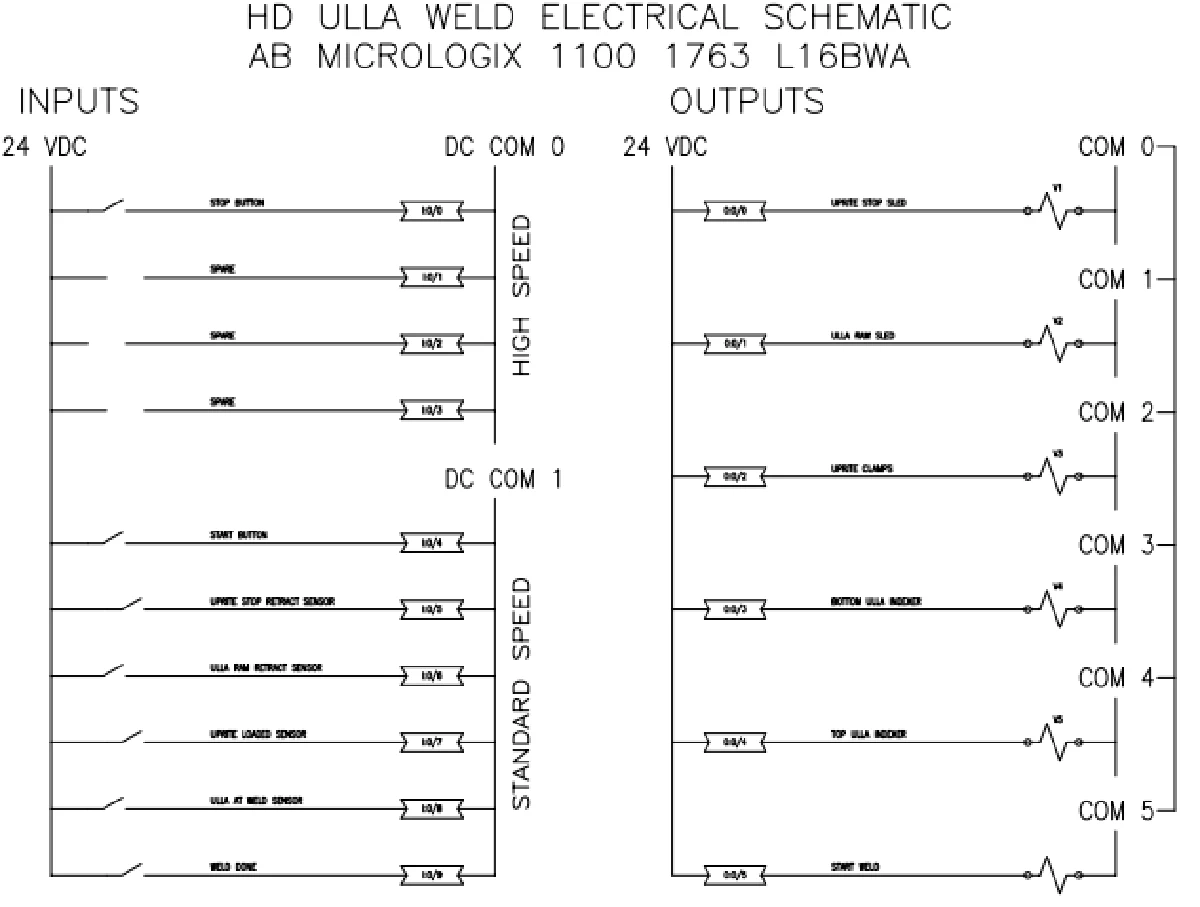

Programming: Wrote PLC logic to synchronize sensors, actuators, and robot arm movements for a seamless handshaking sequence.
Prototyping: Collaborated closely with the tool and die shop to fabricate the hardware.
Iterating: Conducted stress testing and refined the clamping pressure and sensor positioning to eliminate part slippage.

Efficiency: Halved labor costs by transitioning from manual to automated operation.
Safety: Significantly improved ergonomics, resulting in a measurable reduction in reported back injuries.
